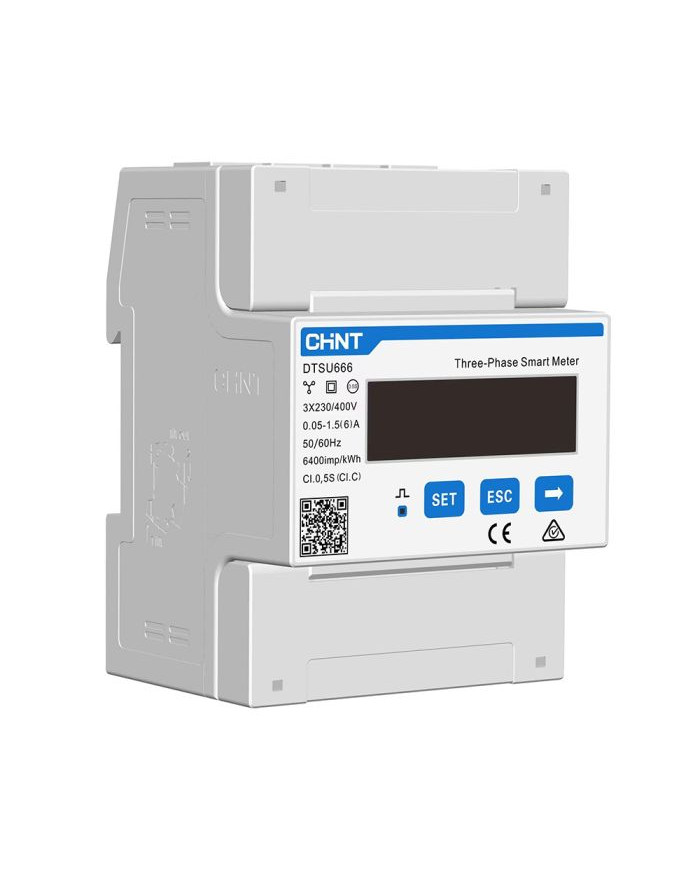

Chint DTSU666 Energy Meter - Three Phase, Bidirectional, Four Quadrant with Network Analyzer Functions

The Chint DTSU666 is a highly versatile and accurate energy meter, perfect for advanced energy monitoring and management in three-phase systems. This bi-directional, four-quadrant meter not only measures electricity consumption but also monitors delivered energy, providing comprehensive insights into your energy usage.

• Three-Phase Compatibility: Designed for 3P4W electrical systems, ensuring accurate measurement in a variety of industrial and commercial settings.
• Bi-Directional Measurement: Measures both consumed and delivered active energy, making it ideal for systems with energy generation capabilities.
• Four-Quadrant Measurement: Provides detailed reactive power data, crucial for comprehensive power analysis and optimization.
• Network Analyzer Functions: Capable of measuring a wide array of electrical parameters including voltage, current, power, frequency, and power factor.
• RS485 Communication: Features a built-in RS485 interface with Modbus RTU and DL/T protocols for seamless integration into existing monitoring systems.

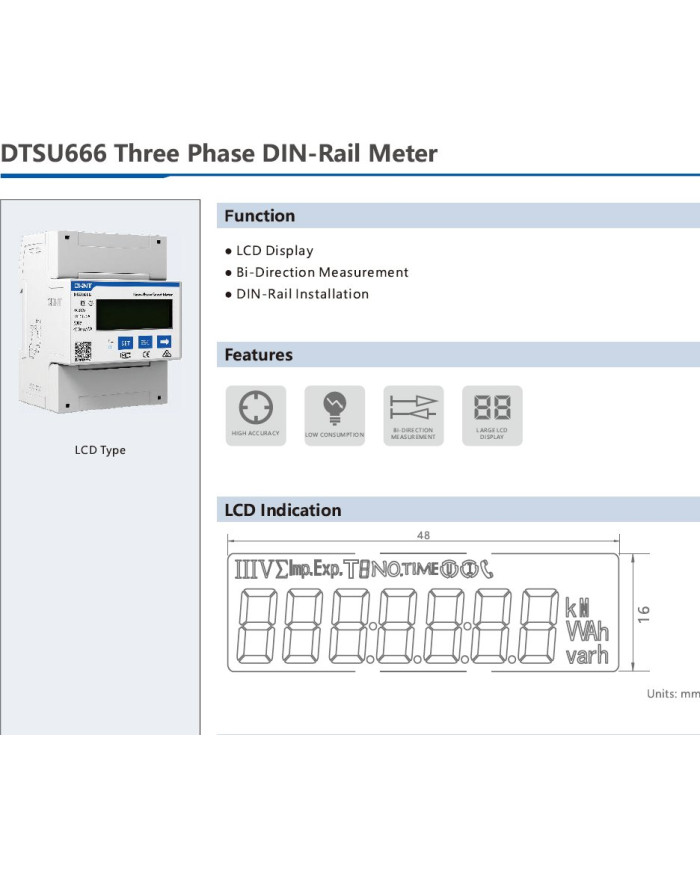

• LCD Display: Equipped with a clear LCD display showing real-time parameters such as phase voltages, currents, active power, and energy values.
• DIN Rail Installation: Easy to install on standard 35mm DIN rails, saving time and effort.
• High Accuracy: Active Energy Class 1.0 accuracy ensures precise and reliable energy measurements.
• Wide Operating Temperature Range: Suitable for a wide range of environments with operating temperatures from -40°C to +75°C.
• Data Retention: Retains data for at least 10 years after power loss, ensuring long-term data integrity.
• Impulse Output: Provides impulse outputs for both active and reactive energy, facilitating integration with external devices.

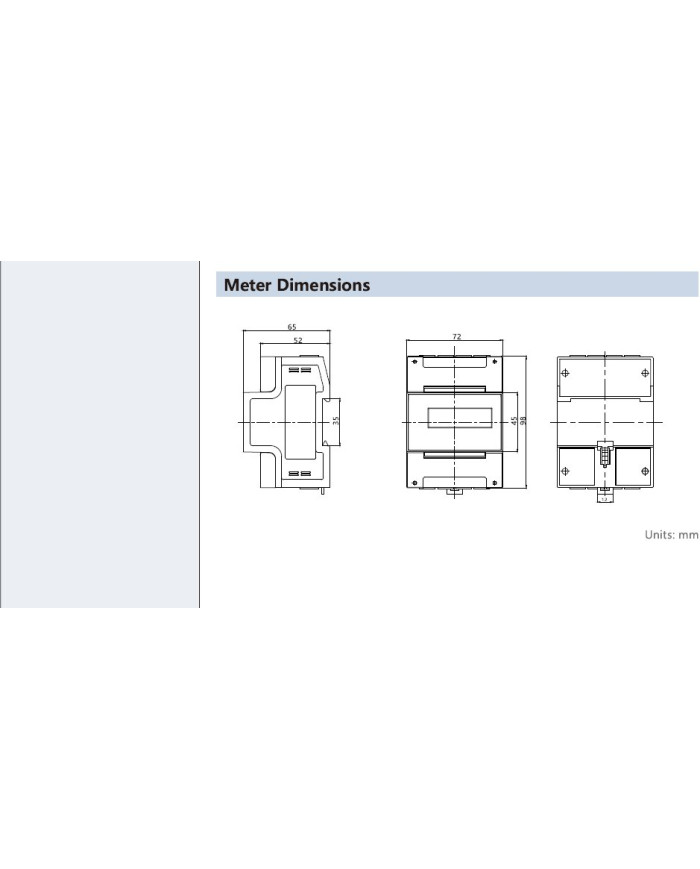

• Compact Design: Compact dimensions of approximately 98mm × 65mm × 72mm make it suitable for installations with limited space.
• Robust Protection: Features IP54 ingress protection, safeguarding against dust and water splashes.

With its comprehensive feature set, the Chint DTSU666 is the ideal solution for monitoring energy consumption and production in various applications. This meter combines accuracy, reliability, and advanced communication capabilities, offering exceptional value for both residential and industrial users. Whether you need to monitor energy usage, optimize power factor, or manage energy generation, the Chint DTSU666 is an excellent choice.
