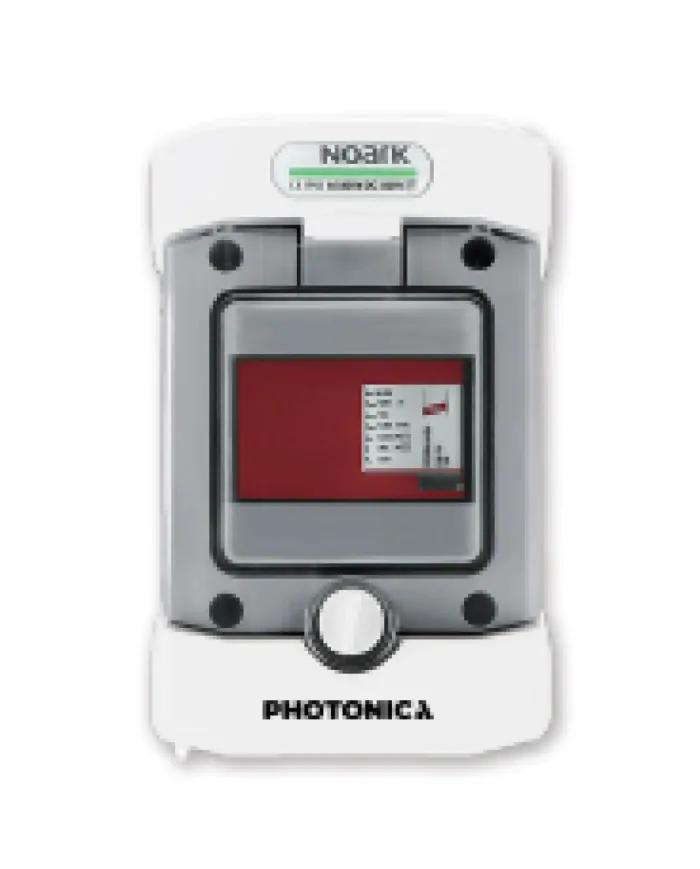

Photonica PDC-D2-C - High-Performance Photonics Module

The Photonica PDC-D2-C is a high-performance photonics module designed to provide reliable protection and efficient management for your DC power circuits. Engineered with precision and built to the highest industry standards, this module ensures the safety and longevity of your valuable equipment.

• Model: PDC-D2-C
• Designed for one DC string
• Housed in a robust PSH 4T enclosure
• Enclosure dimensions: 120/128/201 mm
• Compliant with enclosure standards EN 60670-1 and EN 62208
• IP65 rated, providing excellent protection against dust and water
• IK8 impact resistance rating, ensuring durability in demanding environments
• Equipped with one DC Surge Protective Device (SPD DC)
• SPD Model: DEHN DG M YPV SCI 1000
• SPD Type: T2
• Maximum operating voltage: 1000 V
• Short-circuit withstand capacity: 10 kA
• Nominal discharge current: 12.5 kA
• Maximum discharge current: 25 kA
• Response time (tA): ≤ 25 ns
• Manufactured in accordance with standard EN 50539-11

The Photonica PDC-D2-C module offers a comprehensive solution for DC circuit protection, combining a durable enclosure with high-performance surge protection. Meeting stringent industry standards and designed for easy installation, this photonics module is an essential component for ensuring the reliable operation of your DC power systems. With its robust construction and advanced features, the PDC-D2-C provides peace of mind and long-lasting protection for your investment.
