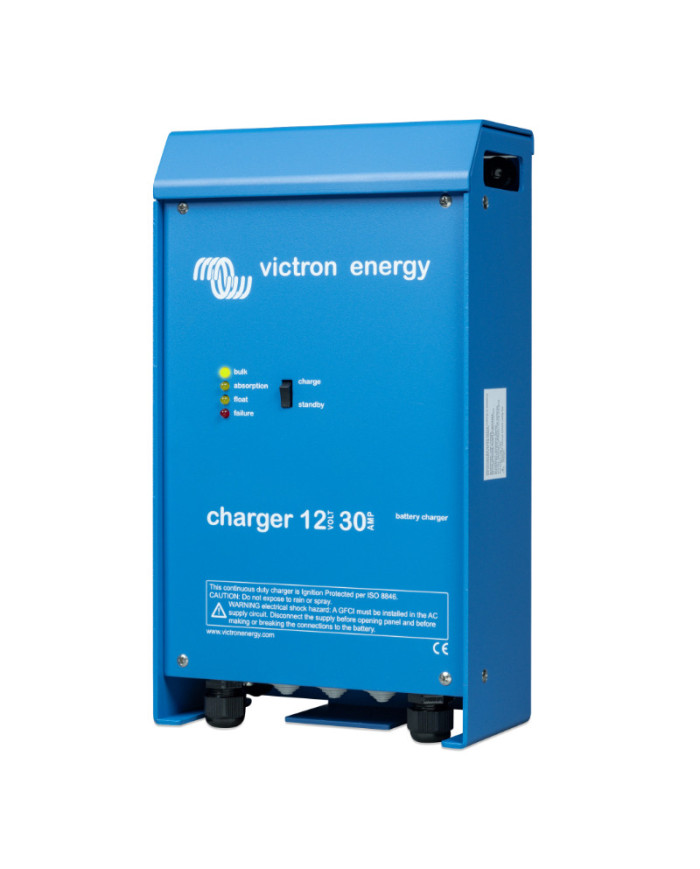

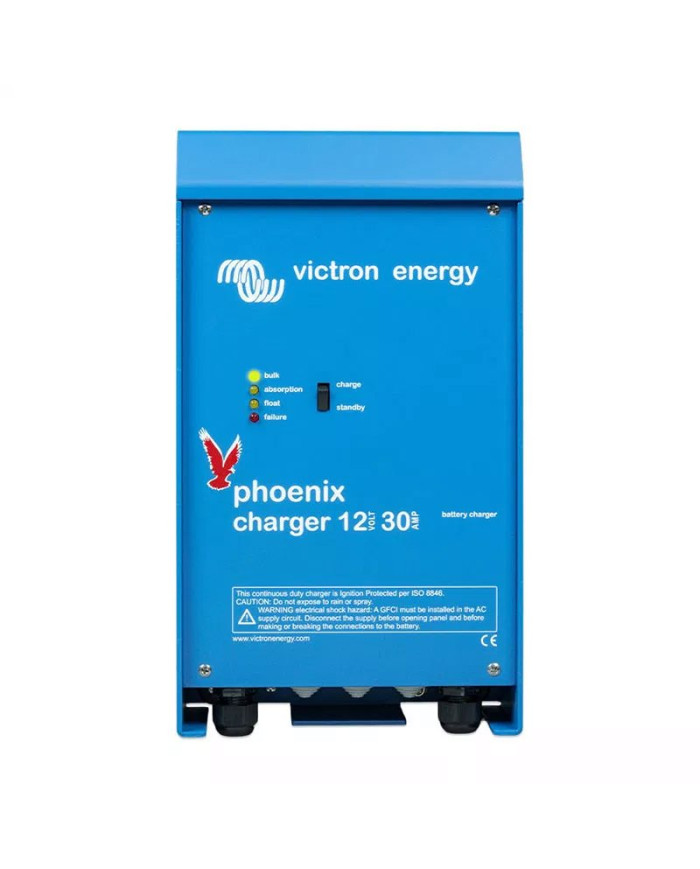

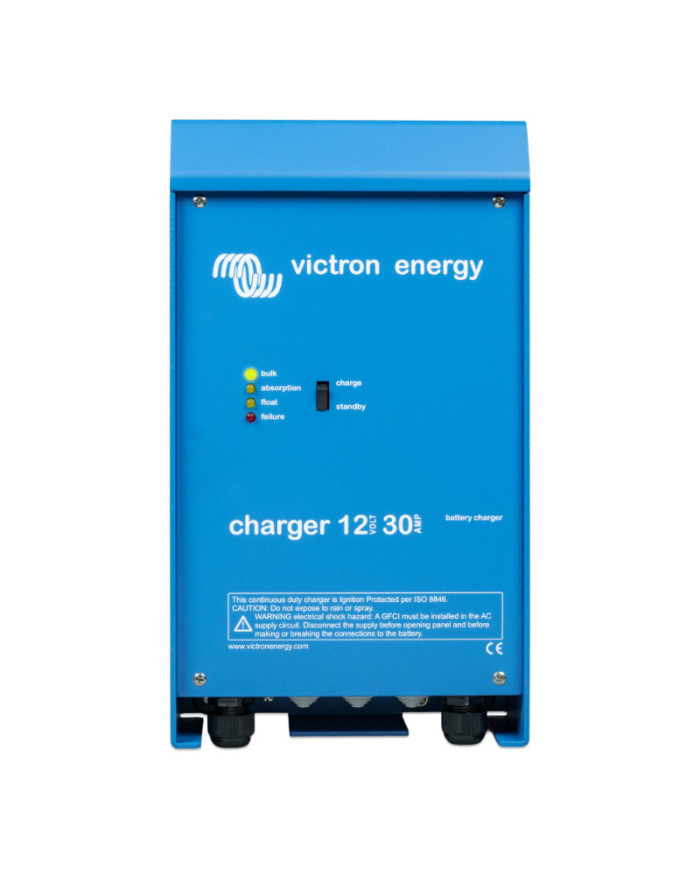

Phoenix Charger 12/30 (2+1) 120-240V

The Phoenix Charger 12/30 (2+1) 120-240V is a versatile and efficient battery charger, designed to meet the demanding needs of modern power systems. With its advanced features and robust construction, it ensures optimal battery performance and longevity.

• Input voltage range: 120-240V AC, ensuring compatibility with various power sources.
• Output: 12/30 (2+1), providing efficient charging for 12V systems.
• Charge voltage: Absorption at 14.4V, float at 13.8V, and charge mode at 13.2V for optimal battery care.
• Charge current: Main battery charging at 30A, starter battery charging at 4A.
• 4-stage adaptive charging: Optimizes the charging process based on battery condition.
• Suitable for battery capacities: 100-400Ah.
• Temperature sensor: Protects from over- or under-charging.
• Power supply mode: Can be used as a power supply.
• Forced cooling: Ensures reliable performance under high-stress conditions.
• Comprehensive protection: Including short circuit, reverse polarity, overvoltage, and over temperature.
• Operating temperature range: -20 to 60°C (-4 to 140°F).
• BatterySafe mode: Prevents damage due to excessive gassing.
• Storage mode: Reduces maintenance during prolonged storage.
• Microprocessor controlled: Adaptive battery management system.

The Phoenix Charger features a universal 90-265 V AC input voltage range, making it suitable for both AC-DC and DC-DC operation. Its ability to communicate with computers via an RS-485 data port allows for advanced monitoring and control. Constructed from durable aluminum with an IP21 protection rating, this charger is built to last, providing reliable power for a wide range of applications.
