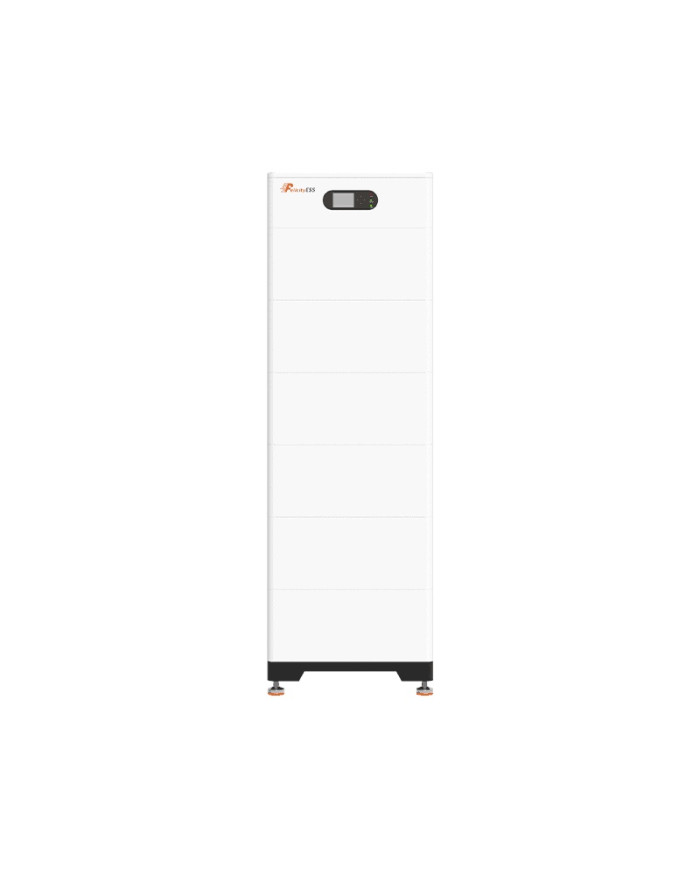

FelicityESS LUX-X-96050HG01 Kit 10.24kWh

The FelicityESS LUX-X-96050HG01 is a high-voltage, stackable LiFePO4 battery system designed for efficient and reliable energy storage. This 10.24kWh kit provides a robust solution for home energy storage, industrial applications, and commercial backup power.

• High Voltage System: Ensures efficient energy transfer and reduced current load.
• Modular Design: Stackable battery modules allow for easy expansion and customization of energy storage capacity.
• LiFePO4 Technology: Offers superior safety, longer lifespan, and higher thermal stability compared to traditional lithium-ion batteries.
• Smart BMS: Integrated Battery Management System provides comprehensive protection against over-voltage, over-current, short circuits, under-voltage, and over-temperature.
• Scalability: Expandable up to 6 battery modules (30.72kWh) stacked and up to 4 clusters connected (122.88kWh).
• High Depth of Discharge (DOD): ≥95% DOD maximizes usable energy.
• Long Cycle Life: >6000 cycles at 90% DOD ensures long-term reliability.
• Wide Operating Temperature Range: Operates reliably in temperatures ranging from 0°C to +55°C for charging and -20°C to +55°C for discharging.
• IP65 Protection: Designed to withstand harsh environmental conditions.
• Communication: Equipped with RS485/CAN communication interfaces for seamless integration with various inverters and monitoring systems.
• WiFi Monitoring: Supports WiFi monitoring systems for real-time status updates, performance analysis, and energy consumption tracking.
• Easy Installation: Stack-mounted design simplifies the installation process.
• Touch Screen Display: LED + LCD (Touch) for easy monitoring and configuration.

The FelicityESS LUX-X-96050HG01 kit comprises a controller module (LUX-X-96050HCG01) and two battery modules (LUX-X-96050HMG01), each with a 5.12 kWh capacity. The system's nominal voltage is 204.8V, and it supports a maximum continuous charge/discharge current of 50A. With its advanced features and robust design, this lithium battery energy storage system offers a reliable and scalable solution for various energy storage needs, backed by a 10-year warranty.
