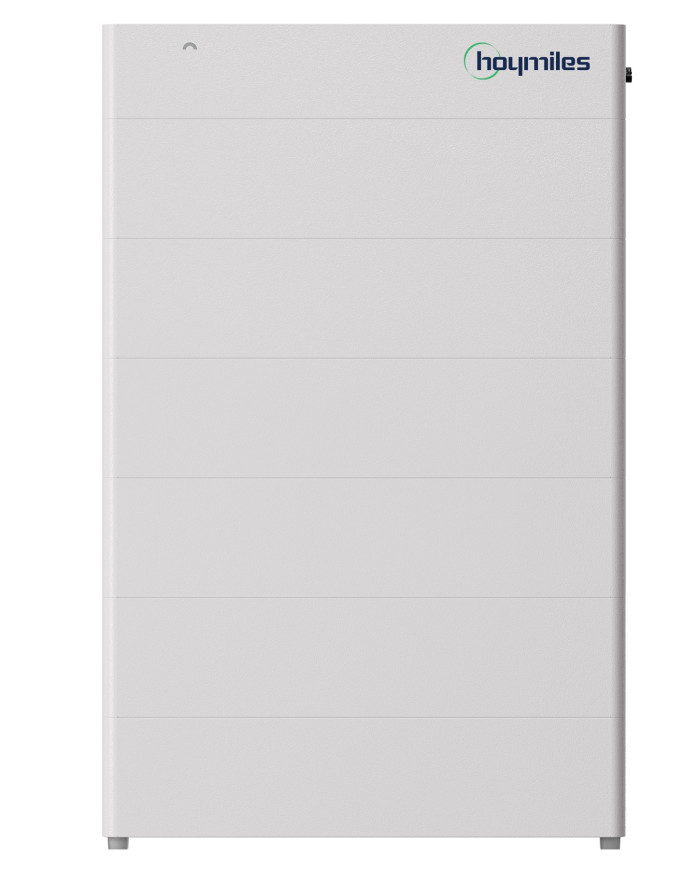

Hoymiles HB-3S-G2-Pack-A 3.84 kWh

The Hoymiles HB-3S-G2-Pack-A 3.84 kWh is a high-performance energy storage solution designed to enhance the efficiency and reliability of your solar power system. This advanced battery module utilizes cutting-edge technology to provide a safe, stable, and long-lasting energy storage option for both residential and commercial applications.

• Nominal Energy: 3.84 kWh
• Usable Energy: 3.46 kWh (at 90% DoD) / 3.84 kWh (at high DoD)
• Battery Type: Lithium Iron Phosphate (LiFePO4) for superior safety and longevity
• Max. Charge/Discharge Current: 25 A (per module)
• Peak Charge/Discharge Current: 50 A (for 10 seconds, per module)
• Cycle Life: > 6000 cycles (at 25°C, 90% DoD, 0.5C/0.5C)
• Operating Temperature Range: Charge: 0°C to 50°C, Discharge: -20°C to 50°C
• Protection Rating: IP65, suitable for both indoor and outdoor installation
• Communication Interface: CAN / RS485 for seamless system integration
• Installation: Wall-mounted or Floor-standing (with optional accessories)
• Modular Design: Allows scalable capacity expansion up to 23.04 kWh or more
• Intelligent BMS: Integrated Battery Management System for comprehensive protection
• Compatibility: Seamlessly integrates with Hoymiles hybrid inverters (HYS series)

The Hoymiles HB-3S-G2-Pack-A features a modular design, allowing you to easily expand your energy storage capacity as your needs grow. Its robust construction, coupled with an IP65 protection rating, ensures reliable performance in diverse environmental conditions. Benefit from enhanced energy independence and optimize your energy usage with this state-of-the-art battery module.
