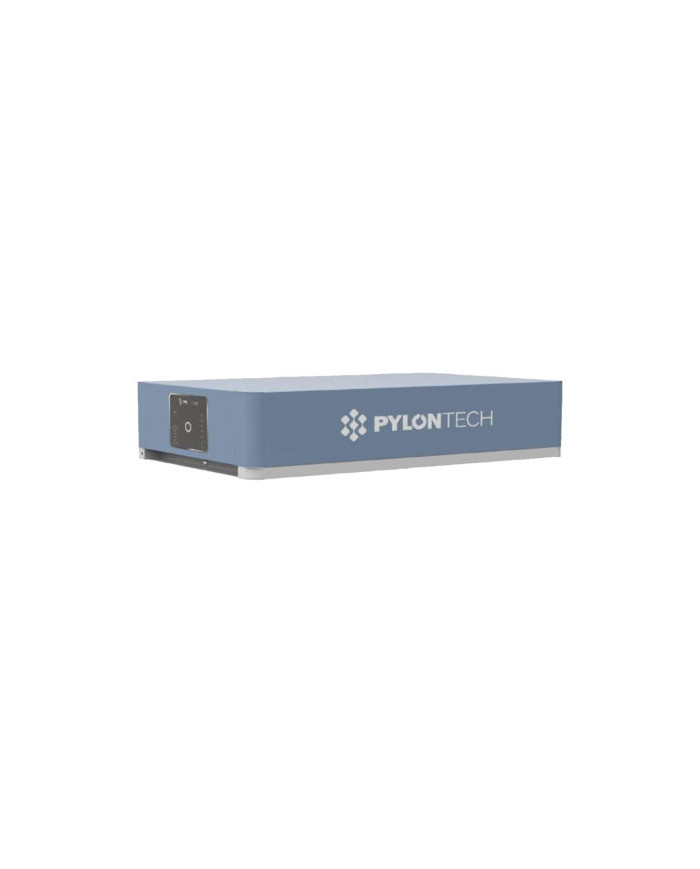

Pylontech Force H1 FC0500-40S BMS Controller

The Pylontech Force H1 FC0500-40S BMS Controller is the central management unit for your Pylontech Force H1 high voltage energy storage system. Designed for optimal performance and safety, this controller ensures seamless communication and efficient operation of your battery modules. It's an essential component for reliable home and SME solar storage solutions.

• Model: FC0500-40S (also commonly seen as FC0500-40S-V2)
• Optimized Battery Management: Ensures efficient performance and seamless battery communication within the Force H1 system.
• Enhanced Safety Features: Offers protection against overcharging, over-discharging, overcurrent, short circuits, and high/low temperatures.
• Real-time Monitoring: Continuously monitors voltage, current, temperature, and charging status of individual battery modules.
• Cell Balancing: Optimizes performance and extends longevity by ensuring cells within each module have similar voltage levels.
• Communication: Supports CANBUS/Modbus RTU, CAN, and RS-485 communication protocols.
• System Scalability: Supports systems from 10.65 kWh (3 modules) to 24.86 kWh (7 modules).
• Certifications: VDE2510-50, IEC62619, UL1973, IEC62477-1, IEC62040-1, CE, CEC (Clean Energy Council Approved), UN38.3
• Working Temperature Range: Operates efficiently between 0°C to 50°C.
• Compact Design: Space-efficient dimensions of 600 mm x 380 mm x 150 mm for easy integration.
• Humidity: Can operate in environments with 5% to 95% humidity.
• Easy Installation: Comes supplied with UP/US Cable Kit.

The Pylontech Force H1 FC0500-40S BMS Controller is designed to maximize the efficiency and lifespan of your Pylontech Force H1 battery system. With its comprehensive monitoring and protection features, this controller ensures your energy storage system operates safely and reliably. Its certifications further guarantee compliance with industry standards, making it a trustworthy choice for your solar storage needs.
