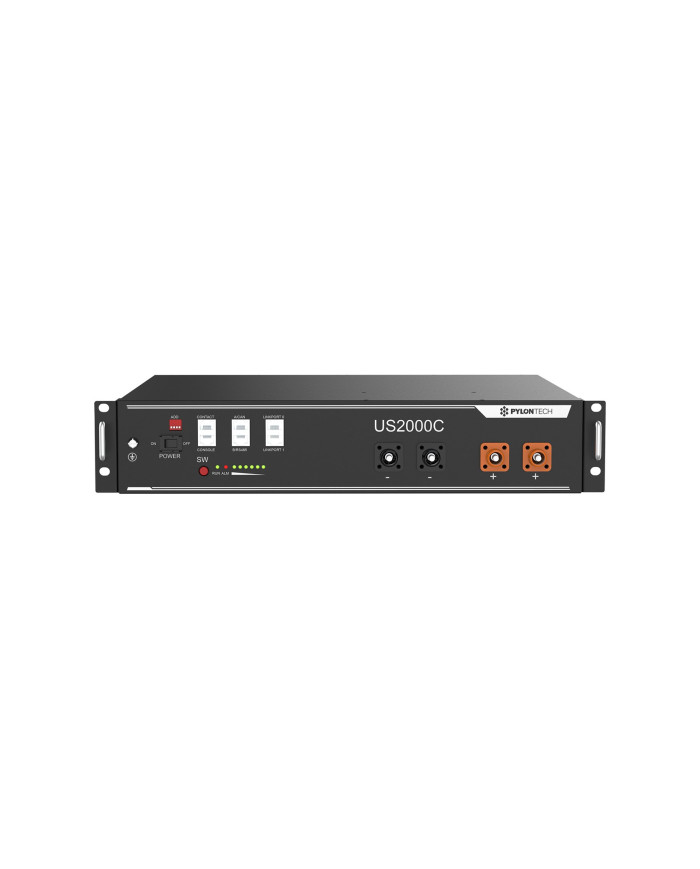

Pylontech US2000C

The Pylontech US2000C is a cutting-edge rechargeable lithium iron battery designed for optimal energy storage and reliability. This advanced battery module offers a blend of high performance, safety, and extended lifespan, making it an ideal choice for various energy storage applications.

• Nominal Capacity: 2.0 Ah, providing 2400Wh of energy storage.
• Usable Capacity: 2280Wh, allowing for a high discharge rate and efficient energy usage.
• Voltage: Operates at a nominal voltage of 48V, with a charging voltage of 52.5V and a discharging voltage of 44.5V.
• High Discharge Rate: Supports a maximum discharge current of 90A (for 15 seconds) and a recommended charge/discharge current of 25A.
• Long Lifespan: Designed for ≥4500 cycles and an expected lifespan of 10+ years (at 25 °C / 77 °F).
• Wide Temperature Range: Suitable for operation in temperatures ranging from -8 to 55 °C during charging and discharging.
• Scalable: Can be configured with up to 16 batteries in parallel for increased energy storage capacity.
• Advanced BMS: Features an integrated Battery Management System (BMS) for over-charge/discharge, over-current, and temperature protection.
• Communications: Equipped with RS485 and CAN communication ports for superior control and monitoring.
• Environmentally Friendly: Contains no contaminating materials, making it an environmentally conscious choice.
• High Discharge Depth: Offers a maximum discharge depth of 95%.
• Compact Design: Dimensions of 442 mm x 420 mm x 89 mm and a weight of 22.5 kg.
• Certifications: TÜV, CE, UN38.3 certified, adhering to standards like IEC62619, IEC62305, IEC1642, IEC60068-2-2, UL1642, IEC61000-6-2 and IEC61000-6-3.
• Compatibility: Fully compatible with US3000C, US3000, and US2000 models.

With its robust design, the Pylontech US2000C ensures reliable performance and longevity. The advanced BMS and communication capabilities provide users with comprehensive control and monitoring options. This battery module is a dependable and sustainable energy storage solution for residential and commercial applications.
