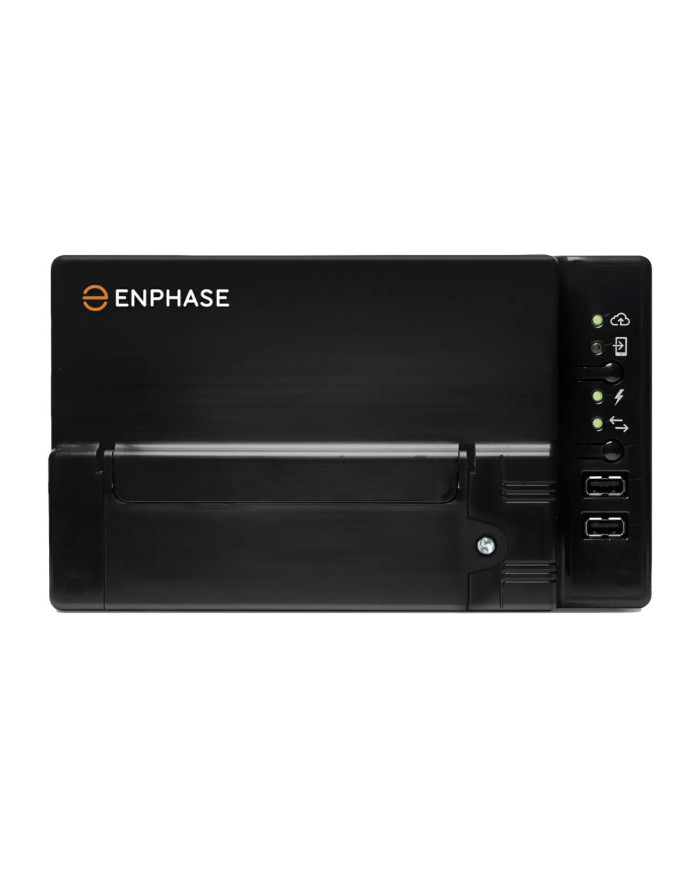

Enphase Envoy-S Standard - Solar System Gateway

The Enphase Envoy-S Standard gateway is the core of your solar power system, providing comprehensive monitoring and communication capabilities. This device ensures your solar installation operates efficiently and reliably by connecting your microinverters to the Enphase Enlighten platform.

• Real-Time Monitoring: Provides up-to-the-minute data on PV production and system performance via the Enphase Enlighten platform.
• Microinverter Capacity: Supports up to 600 microinverters, making it suitable for both residential and commercial installations.
• Remote Upgrades: Features bidirectional communication for seamless remote software updates, ensuring your system always has the latest enhancements.
• Flexible Connectivity: Offers multiple internet connection options, including integrated Wi-Fi (802.11b/g/n at 2.4 GHz and 5 GHz) and optional Ethernet and mobile connectivity.
• Easy Installation: Simplified setup process using the Enphase Installer Toolkit™ mobile app.
• Mobile App Compatibility: Fully compatible with both iOS and Android devices for convenient monitoring and reporting on the go.
• System Alerts: Sends proactive alerts via the mobile app to notify you of any issues or potential problems with your system.
• Compact Design: Weighing just 0.5 kg with dimensions of 213 x 126 x 45 mm, it’s easy to install in various locations.
• Wide Temperature Range: Operates reliably in ambient temperatures ranging from -40° to +65°C.
• Compliance: Meets key industry standards, including IEC/EN 61010-1:2010, EN 61000-4-5, EN61000-6-1, and EN10000-6-2.
• USB Ports: Equipped with two USB 2.0 ports for enhanced connectivity and functionality.
• Voltage Compatibility: Supports 230 VAC or 400/230 VAC, making it adaptable to various electrical systems.
• Data Transmission: Seamlessly transmits data to the Enphase Enlighten system for comprehensive analysis and reporting.

The Enphase Envoy-S Standard ensures accurate PV production monitoring with only ±5% error. Designed for indoor installation or outdoor use within an IP54-rated enclosure, this gateway provides a robust and reliable solution for managing your solar energy system. With its comprehensive features and ease of use, the Enphase Envoy-S Standard is an essential component for optimizing your solar investment.
